X120Mn12 High Manganese Steel plate

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time:only one week for stock, customized products according to order negotiation.
Loading Port:Shanghai ,Qingdao,Tianjin .
payment terms:By T/T or L/C.
Supply capacity:500MT/month.
MOQ: According to order negotiation.

Share

PRODUCT DESCRIPTION

Product Images

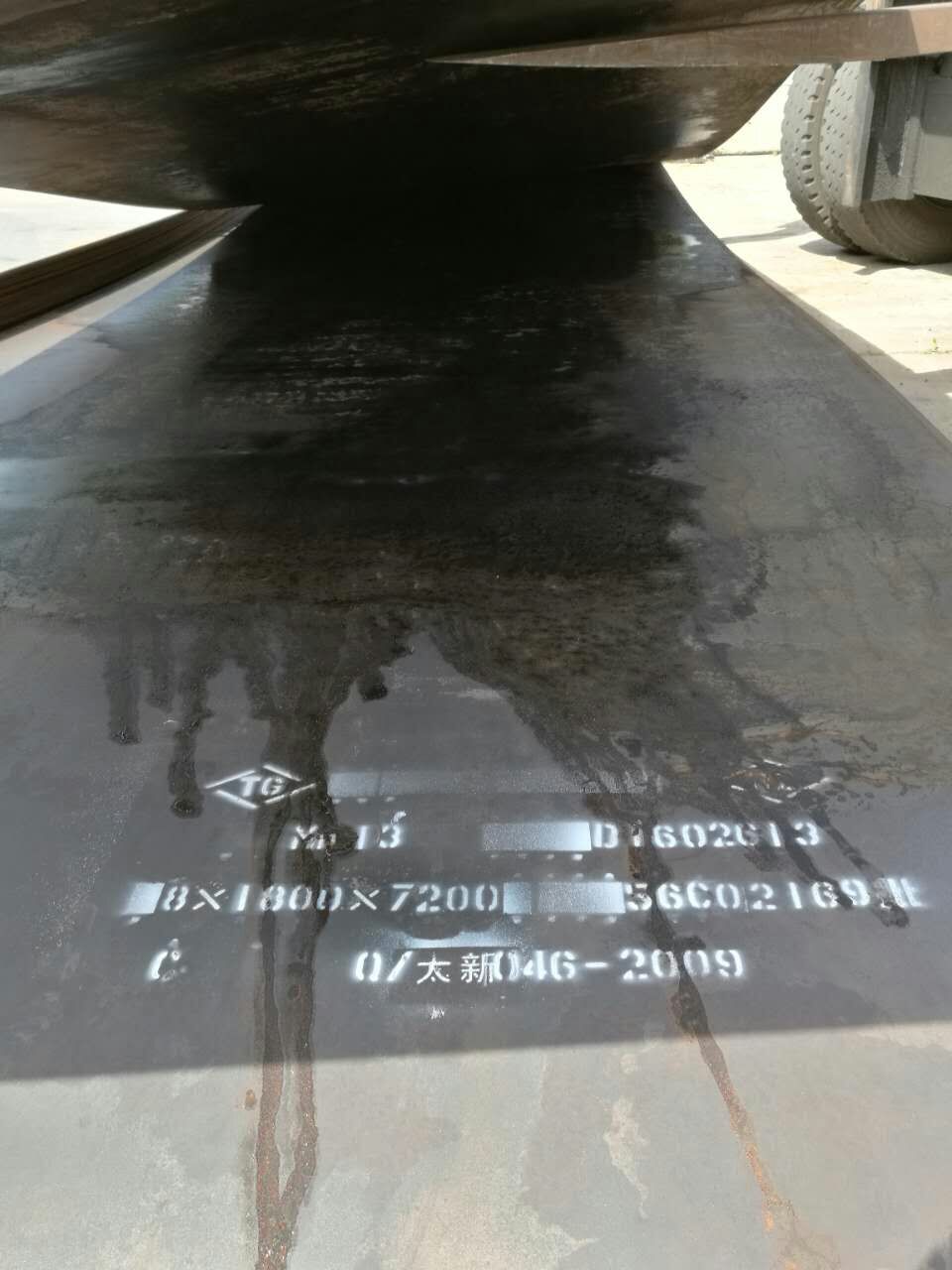

mmexport1504167062040

Product Images

Mn13 High Manganese wear resistant steel plate-chemical composition /%

GRADE C Si Mn P S
X120Mn12 1.10~1.30 0.30~0.50 12.00~14.00 ≤0.03 ≤0.01

Other chemical elements can be added to steel

Mn13 High Manganese wear resistant steel plate-mechanical properties

Hardness(as delivered) Yield Strength Tensile Strength Elongation After Work Hardening
≥170HBW ≥400Mpa ≥900Mpa  ≥40% 550HBW

Actual field results may vary based on application and overall conditions of use.

Mn13 Specifications of Products in Stock:

The often stock thickness width length
2mm~5mm 1000mm~1200mm 2000mm~2400mm
6mm~25mm 1800mm~2100mm ≥5800mm

The other thickness can be ordered and welcome you inquiry us.

Product Images

Mn13 high manganese steel corresponding foreign brands:

QB Mn13 DIN 1.3401
EN X120Mn12;X120Mn13 AFNOR Z120Mn12
ASTM A128 Grade A; Grade B2 ISO 13521 Grade GX120Mn13
Arcelor Mittal Creusabro M JIS G5131 Grade SCMnH1; H2; H3
CNS 3830 Grade SCMnH1; H2; H3 GOST 21357 Grade 110G13L
CSN 417618 Grade 17618 Others Hadfield steel, manganese steel, 12% Mn steel, 13% Mn steel...


High manganese wear resistant steel plate is the best choice among the wear resistant materials used for resistance to strong shocks and great pressures, which has a sound work hardening property that is unmatchable for other wear resistant materials, because under a great impact load or contact stress, work hardening is induced on the surface layer of a steel plate and the hardness of its surface rapidly increases from HB200 to over HB500, thus a high wear resistant surface layer is formed while the austenite in the inner layer of the steel plates still remains a good impact toughness. High manganese steel has two major features: first, the greater the external impact load, the higher the wear resistance of its surface; second, with the gradual wear of the hardened surface layer, new work hardening layers will be formed continuously. These special features of high manganese steel make it suitable to be used in the manufacture of wear resistant components subjected to prolonged wear under high impacts, and it has been widely used in the mechanical devices for industries of metallurgy, mining, building materials, railway, electricity, coal and others. Especially in recent years, with the high-speed development of modern industries and rapid progress of science and technology, high manganese steel has been chosen as the best wear-resistant material for the production of advanced equipments such as magnetically levitated trains, safes, bullet-proof vehicles, rock-drilling robots, new tanks, and so on. Compared to the high manganese steel, many new materials and modern surface engineering technology remains not cost-effective yet.
