ABS Grade AH36/DH36/EH36/FH36 Shipbuilding Steel Plate

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time:only one week for stock, customized products according to order negotiation.
Loading Port:Shanghai ,Qingdao,Tianjin .
payment terms:By T/T or L/C.
Supply capacity:5000MT/month.
MOQ: According to order negotiation.

Inquire Now Chat Now

PRODUCT DESCRIPTION

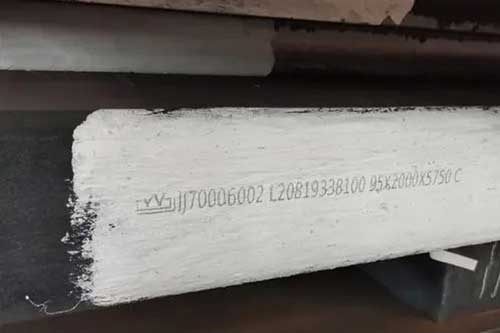

Product Images

ABS Grade AH36 Shipbuilding Steel Plate

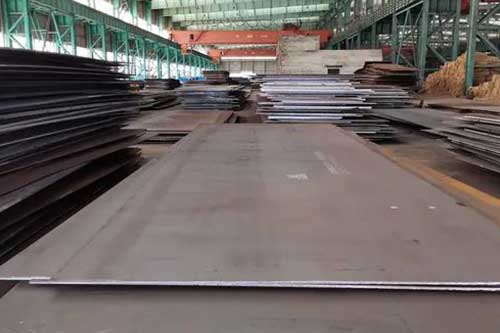

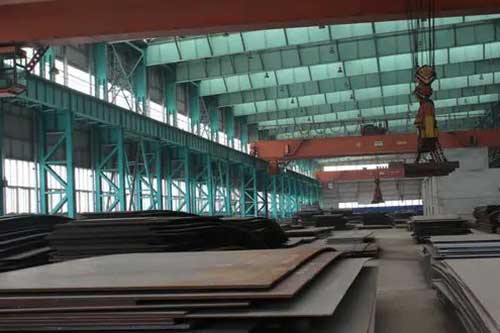

Product Images

ABS Grade AH36 Shipbuilding Steel Plate Chemical Composition

C max	Si max	Mn	P max	S max	Als	Nb	V	Ti max.	Cu max.	Cr max.	Ni max.	Mo max.	N max.
0.18	0.5	0.90-1.60	0.03	0.03	0.015	0.02-0.05	0.05-0.10	0.02	0.35	0.2	0.4	0.08	-

ABS Grade AH36 Shipbuilding Steel Plate Mechanical Property

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
355	490-630	21

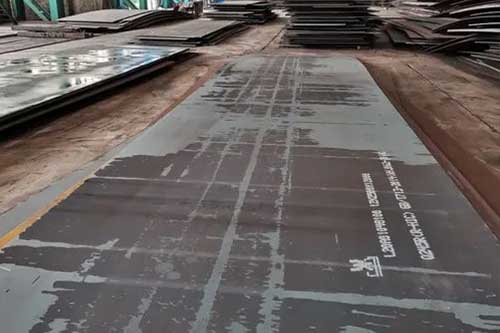

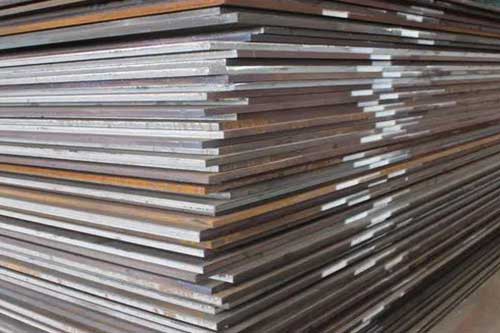

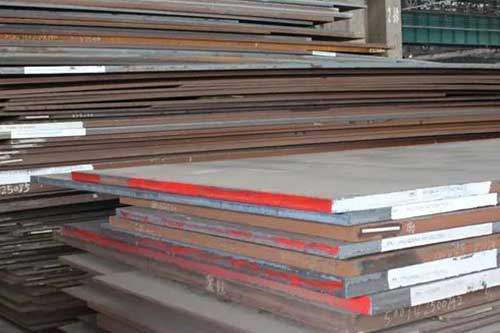

Product Images

ABS Grade AH36 Shipbuilding Steel PlateABS Grade AH36 Shipbuilding Steel Plate Application

ABS Grade AH36 Shipbuilding steel plate is mainly used to Shipbuilding Project and Ocean Offshore Structural

ABS Grade AH36 Shipbuilding Steel PlateABS Grade AH36 Shipbuilding Steel Plate Other Name

ABS Grade AH36 Shipbuilding steel plate,ABS Grade AH36 Ship Steel plate ,ABS Grade AH36 Marine Steel plate , ABS Grade AH36 Steel Plate

ABS Grade AH36 Shipbuilding Steel PlateAdditional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
