ABS Grade AH40/DH40/EH40/FH40 Shipbuilding Steel Plate

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time:only one week for stock, customized products according to order negotiation.
Loading Port:Shanghai ,Qingdao,Tianjin .
payment terms:By T/T or L/C.
Supply capacity:5000MT/month.
MOQ: According to order negotiation.

Share

PRODUCT DESCRIPTION

ABS Grade AH40 Shipbuilding Steel Plate Chemical Composition

C max Si max Mn P max S max Als Nb V Ti max. Cu max. Cr max. Ni max. Mo max. N max.
0.18 0.5 0.90-1.60 0.03 0.03 0.015 0.02-0.05 0.05-0.10 0.02 0.35 0.2 0.4 0.08 -


ABS Grade AH40 Shipbuilding Steel Plate Mechanical Property

Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
390 510-660 20

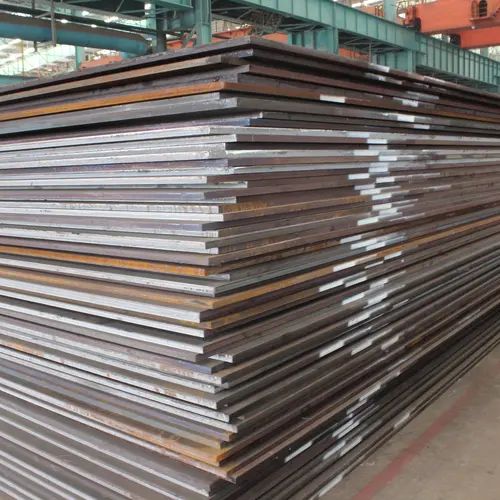

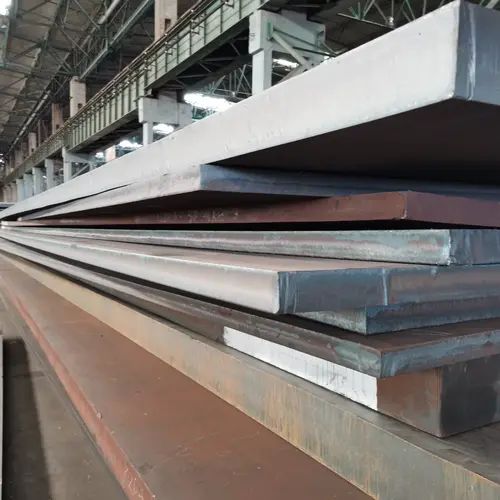

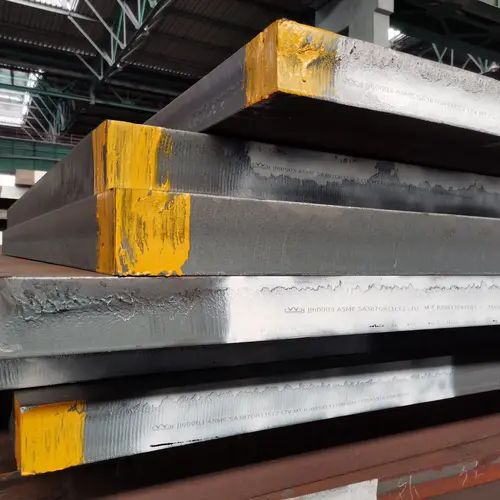

Product Images

ABS Grade AH40 Shipbuilding Steel PlateABS Grade AH40 Shipbuilding Steel Plate Application

ABS Grade AH40 Shipbuilding steel plate is mainly used to Shipbuilding Project and Ocean Offshore Structural



ABS Grade AH40 Shipbuilding Steel PlateABS Grade AH40 Shipbuilding Steel Plate Other Name

ABS Grade AH40 Shipbuilding steel plate,ABS Grade AH40 Ship Steel plate ,ABS Grade AH40 Marine Steel plate , ABS Grade AH40 Steel Plate .



ABS Grade AH40 Shipbuilding Steel PlateAdditional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
